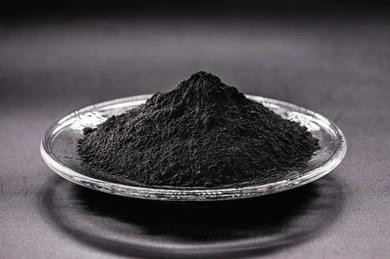

Introduction to Silicon Carbide Powder
Silicon carbide is made from petroleum coke and high-quality silica as the main raw materials, with salt as an additive, and is smelted at high temperature in a resistance furnace. The smelted crystal has high purity and high hardness. Its hardness is between corundum and diamond, and its mechanical strength is Higher than corundum.
Compared with black silicon carbide powder, green silicon carbide has advantages in high temperature, electrical insulation and chemical stability.
Silicon carbide has high hardness, high thermal conductivity, good chemical stability and electrical insulation properties, making it widely used in many fields such as abrasives, ceramics, electronic devices, and high-temperature applications.
Silicon Carbide Powder Specifications
| Grade | SiC | F.C | Fe2O3 |
|---|---|---|---|
| ≥ | ≤ | ||
| SiC98 | 98 | 0.3 | 0.8 |
| SiC97 | 97 | 0.3 | 1 |
| SiC95 | 95 | 0.4 | 1 |
| SiC90 | 90 | 0.6 | 1.2 |
| SiC88 | 88 | 2.5 | 3.5 |
Characteristics: stable chemical properties, small thermal expansion coefficient, good wear resistance and high thermal conductivity.
Materials: Quartz sand, petroleum coke, silica quartz sand, petroleum coke (or coal coke), wood chips (salt needs to be added when producing silicon carbide) and other raw materials
Application fields
one 🔧 Abrasives and refractory materials
As a high-grade abrasive, it is widely used in the manufacture of grinding wheels, grinding discs, diamond tools, sandblasting materials, etc.
As a refractory material, it is suitable for metallurgical furnace lining, crucible, nozzle, furnace nozzle and other components, with high temperature strength and thermal shock resistance.
two 🧱 Steel smelting
Used as an efficient deoxidizer and carburizer to improve the purity of molten steel and reduce costs.
Especially suitable for refining special steel, stainless steel, ductile iron, etc.
three ⚡ electronic industry
SiC is a third-generation wide bandgap semiconductor material widely used in:
High temperature, high voltage, high-frequency power electronic devices (such as MOSFETs, IGBTs, etc.)
Vehicle power supply, 5G communication, new energy vehicle inverter.
four 💡 Ceramics and structural materials
Used for preparing high-performance ceramic components such as bearings, sealing rings, nozzles, valve seats, etc.
Due to its lightweight and high strength, it is commonly used in aerospace and military structural materials.
five 🔥 Photovoltaic and New Energy
Used as a cutting material for solar crystalline silicon wafers (SiC micro powder for silicon wafer wire cutting).
Used in the field of new energy to prepare efficient heat dissipation materials and fins.
six 🌡️ Heat exchange and heat dissipation materials
High thermal conductivity makes it suitable for use as a material in heat transfer sheets, radiators, and heat exchangers.
Applied to thermal management scenarios such as high-power LEDs and chip packaging.
seven 🌪 Environmental Protection and Chemical Industry
Used for producing high-performance filter membranes (ceramic membranes), catalytic carriers, desulfurization adsorbents, etc.
It has good stability towards acidic and alkaline gases and is widely used in waste gas treatment equipment.
Types Of silicon carbide Powder
si carbide lump
Black silicon carbide blocks are often used in applications that require cutting, processing or grinding, such as preparing grinding wheels, cutting discs, etc.

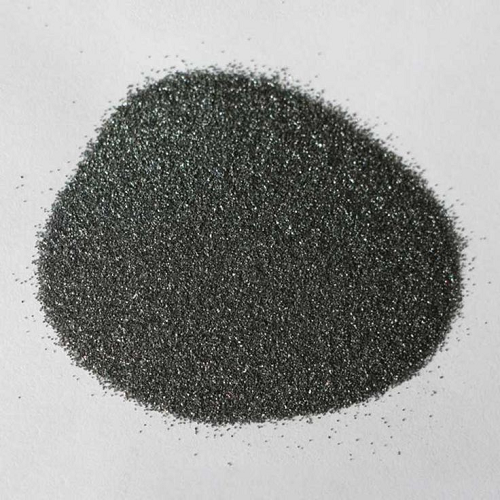

silicon carbide particles
The size of black silicon carbide particles generally ranges from a few millimeters to tens of microns. Commonly used in sandblasting, polishing, surface treatment and other applications to provide uniform abrasive and clean surfaces.
Black SiC powder
The particle size of black silicon carbide powder is generally in the nanometer to micron level. Powdered products are commonly used in material reinforcement, coatings, fillers and other applications
